Product Introduction

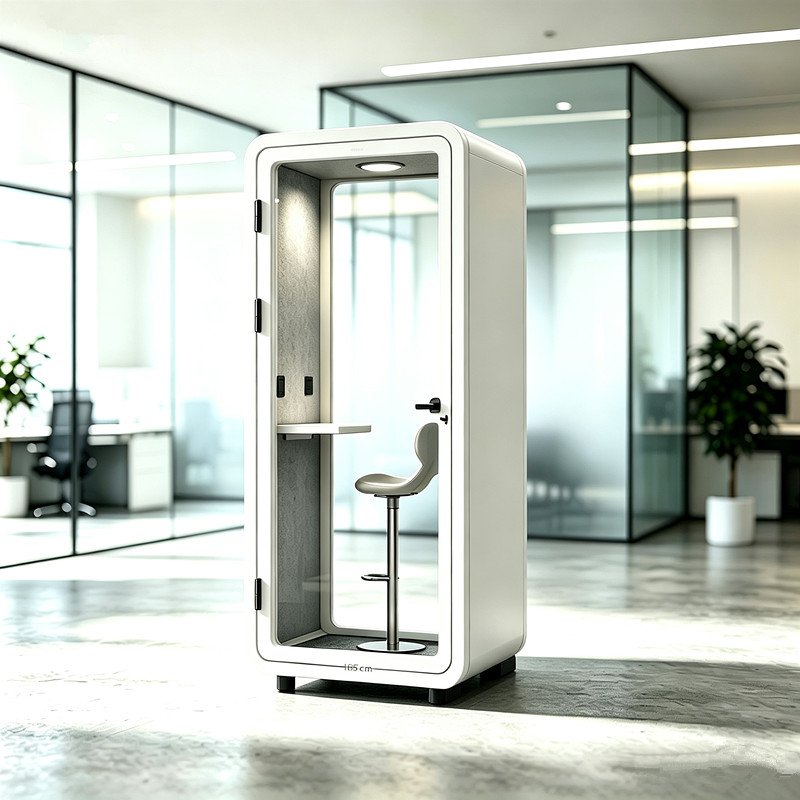

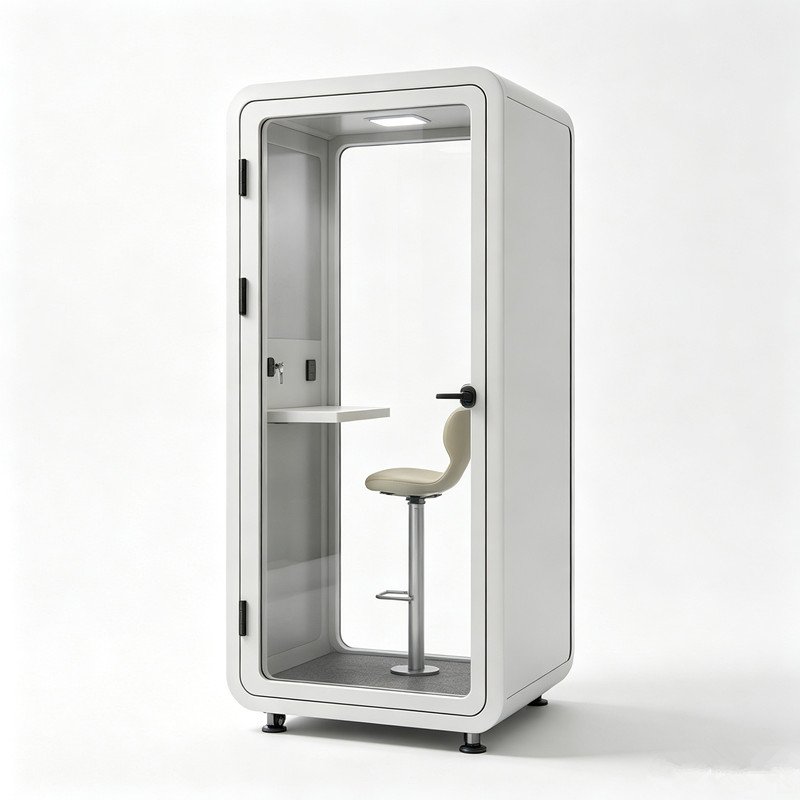

Soundproof Phone Booth adopts a 7-layer professional sound insulation structure. It is an ideal quiet solution for open offices, co-working spaces, libraries and industrial parks. Designed for private calls, online meetings, voice recording, reading and individual focused work. Modular design for easy assembly and movement.
The side panel is composed of steel plate, butyl damping vibration layer, honeycomb aluminum sheet, eco-friendly sound insulation cotton, acoustic cavity, 12mm ENF grade board and PET acoustic panel. Front and rear panels use 8mm 3C tempered glass with EPDM sound sealing strips for excellent sound reduction. When ambient noise reaches 80-90dB, sound insulation from inside out is 35±5dB, and sound insulation from outside in is 15±5dB.
Comes with built-in table, power cable, door lock, casters, leveling feet, dual ventilation fans, LED light, power socket and control switch. Easy to move and level. Custom colors available, direct supply from manufacturer.
Product Specifications
- Name: Phone Booth
- Model: H106
- External Dimension: L105 × W100 × H233 cm
- Interior Dimension: L91 × W92 × H206 cm
- Built-in Table Size: L60 × W30 cm
- External Accessories: 1 power cable, 1 door lock, 4 casters, 4 leveling feet
- Internal Accessories: 2 fans, 1 LED light, 1 power socket, 1 switch
- 7-layer Soundproof Structure: Side: Steel plate, butyl damping vibration layer + honeycomb aluminum sheet, eco-friendly sound insulation cotton, acoustic cavity, 12mm ENF grade board, PET acoustic panel Front & Back: 8mm 3C tempered glass + EPDM sound insulation sealing strip
- Sound Insulation Performance: At ambient noise 80-90dB, inside-out sound attenuation: 35±5dB; outside-in sound attenuation:15±5dB
